지코일은 연구소와 실생활에서
꾸준히 연구되고 있습니다
지코일 풋웨어는 130만 켤레 이상 판매되며 쌓인 실착용·구매자 데이터와 함께, 여러 명문 연구기관에서 진행된 보행·충격 관련 연구 자료를 가지고 있습니다. 그중 일부를 아래에 소개합니다.
원추형 코일 서스펜션
일반 신발보다 압축 거리가 길고, 코일 회전으로 과내전·과외전을 조정할 수 있는 구조입니다.
내장형 오소틱 (Z-Orthotic™)
단단한 Z-Orthotic™이 발을 안정적으로 지지하여 압력을 고르게 분산시키고, 족저근막염·발바닥 통증·뒤꿈치 통증을 줄여줍니다.
Forefoot Cushioning
약 2.5cm 두께의 부드러운 쿠션이 발 앞부분의 중족골을 보호하고, 스프링과의 밸런스를 서포트합니다.
Flex Line & Rocker Bottom
곡선 형태와 유연한 밑창이 자연스러운 걸음걸이를 도와주며, 발 앞부분의 피로를 줄여줍니다.
Heel Pad
코일 하단의 힐 패드가 지면 접촉 시 추가 완충 역할을 합니다.
족저압 저감 인체공학 연구

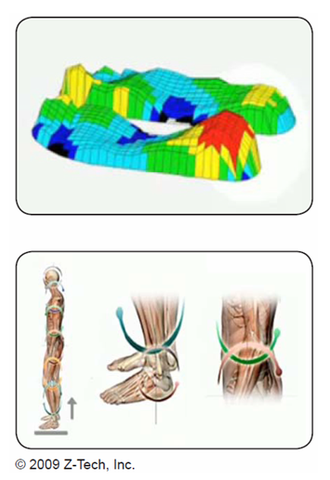

NMHU 연구원 Wayne Scheler가 Z-CoiL Footwear, Novel Electronics와 함께 진행한 석사 과정 연구입니다. 하루 8~10시간 서서 일하는 산업 현장 근로자 19명을 대상으로, 생산 라인을 모사한 환경에서 Novel社의 Pedar 압력 측정 시스템을 사용해 전족·중족·후족 부위별 족저압을 실시간으로 측정했습니다. 측정 결과 지코일 착용 시 전체 발 평균 13%, 뒤꿈치 16%, 중족부 14%의 족저압 감소가 관찰되었습니다. 연구진은 이러한 족저압 감소가 발목, 무릎, 고관절, 허리로 이어지는 충격 부담을 함께 줄이는 요인이 될 수 있다고 설명했습니다.
"According to the data, the plantar regions recorded in ZCoiL® shoes showed a statistically significant decrease in mean peak pressure. The whole foot averaged a 13% reduction, with a 16% reduction at the heel, 14% at the midfoot, and 0.05% in the forefoot."
"This research study was conducted in 2008 as part of the Masters program in the area of Human Performance and Sport at New Mexico Highlands University (NMHU), USA. NMHU researcher Wayne Scheler teamed up with Z-CoiL Footwear and Novel Electronics to evaluate the ergonomic benefits of ZCoiL® shoes worn as occupational footwear."
"With the ergonomic implementation of ZCoiL® shoes, the plantar surface of the foot experienced a significant decrease in pressure. This decrease helps fight fatigue and injury, while improving joint health."

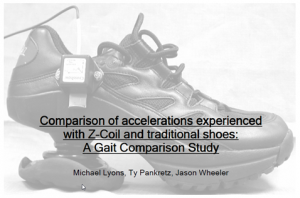

보행 충격 가속도 비교 연구

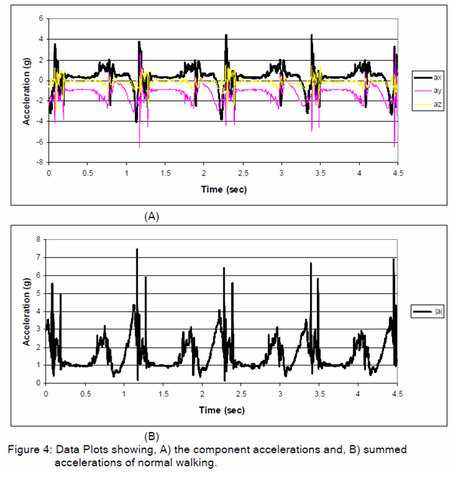

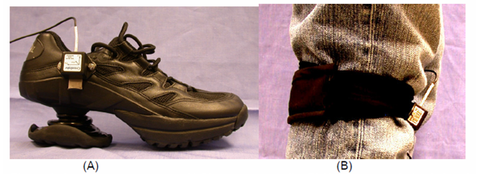

샌디아 국립연구소(Sandia National Laboratories) 사이버네틱 시스템 통합팀(Org. 6633)이 2005년 7월 진행한 보행 비교 연구입니다. 참가자들에게 지코일과 경쟁사 신발을 각각 신게 한 뒤 3축 가속도계를 부착해 걷기와 조깅 시의 충격 가속도 데이터를 수집했습니다. 측정 결과 지코일 착용 시 걷기 13.34%, 조깅 17.2%의 평균 최고 가속도(MPA) 감소가 나타났으며, 두 수치 모두 통계적으로 유의미했습니다(p<0.0001). 일부 참가자에게서는 체중 등의 이유로 스프링이 완전히 압축되는 현상이 관찰되었고, 이를 제외하면 감소폭은 더 커지는 것으로 확인되었습니다.

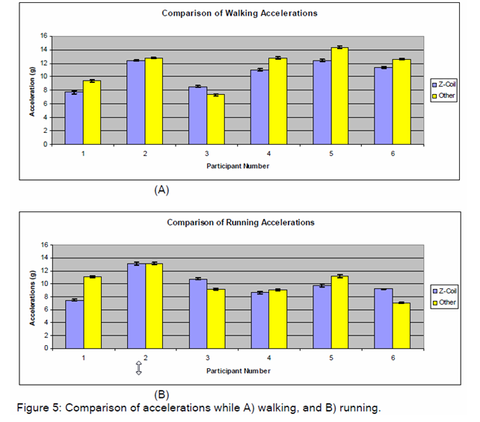

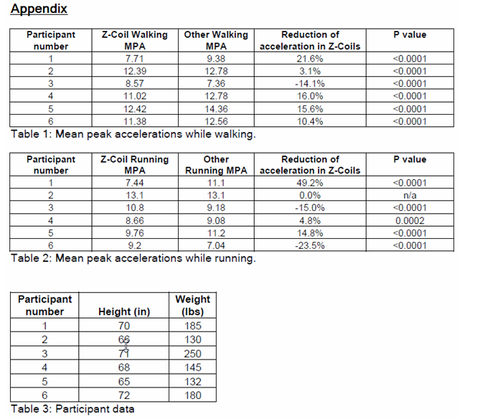

"The results showed significantly lower mean peak accelerations in the Z-Coils when walking (13.34%, P value <0.0001) and jogging (17.2%, P value <0.0001)."
"This report summarizes findings from a gait comparison study that was performed at Sandia National Laboratories in Albuquerque, NM, USA in July of 2005. Test subjects were outfitted with two kinds of shoes, Z-Coil and a leading competitor."
"It is proposed that these reduced accelerations may be a reason why wearers of the Z-Coil shoes report reduced joint pain compared to traditional elastomer-based footwear."

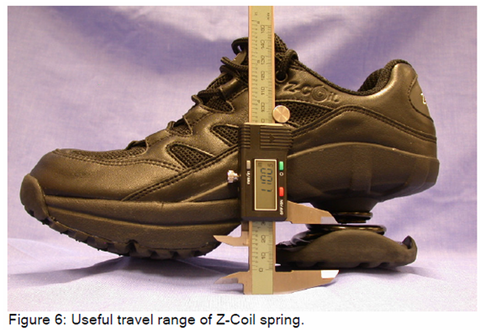

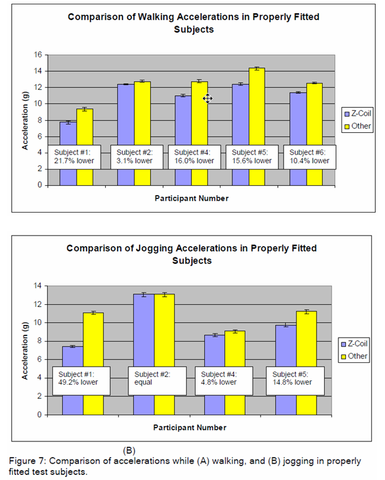

"With the exclusion of the data for those subjects who bottomed out the springs, the reduction in walking MPA is changed from 8.7% to 13.4%. The reduction in jogging MPA is changed from 5.1% to 17.2%."
러닝화 충격 완충 평가

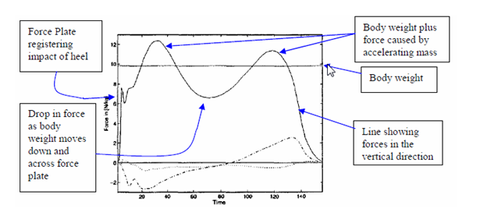

로스 알라모스 국립연구소(Los Alamos National Laboratory)가 진행한 러닝화 평가 연구입니다. 스펀지(EVA) 쿠셔닝 러닝화와 지코일 운동화(Recoil)를 비교한 결과, 충격 발생 시의 펄스 곡선(force-time curve)을 측정한 결과 지코일 쪽의 충격 지속 시간이 경우에 따라 최대 50% 더 길게 나타났습니다. 충격이 길게 분산된다는 것은 같은 충격이라도 더 완만하게 전달된다는 의미로, 특히 체중이 가볍거나 수직 움직임이 적은 러너에게서 그 차이가 두드러졌습니다. 최대 충격력 자체는 비슷했지만, 그 힘이 도달하는 데 걸리는 시간이 길어지는 점이 발과 종아리에 전해지는 충격 완화로 이어진다고 분석되었습니다.
"Pulse durations were observed to be as much as 50% longer for the Recoil shoes in some cases."
"The pulse curves for the Recoil running shoes were typically of longer total duration than the curves for the elastomer cushioned running shoe."
"The initial impact forces appear to be less abrupt in the Z-CoiL shoes, resulting in a reduction of the jarring effect to the foot and the lower leg of a runner as the heel impacts the ground. The fact that the peak forces are equivalent to those of the traditional running shoe may be offset by the longer period of time required to reach these peaks after initial impact."
